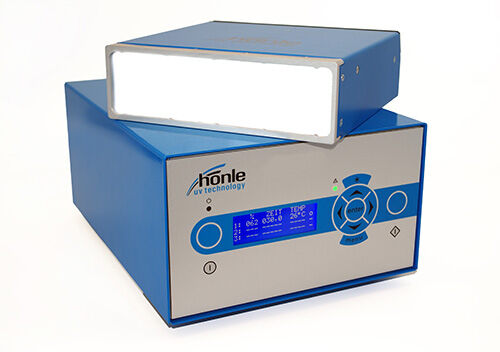

Hoenle LED Spot 200 HP IC
The LED SPOT 200 HP IC from Hoenle is the perfect solution for all applications which need a highly intensive UV irradiation on larger areas.
The curing device features homogeneous irradiation of the substrate due to a uniform light distribution for perfect curing results. It ensures high process reliability thanks to the recognition of LED-malfunction and comprehensive monitoring functions. The LED SPOT 200 HP IC delivers maximum of productivity as well as safe and reproducible quality in automated production lines.
Different geometries can be irradiated by a modular stringing together of several LED Spots for homogeneous irradiation. It is suitable for any substrate due to different wavelengths.
Application fields:
- Bonding, fixing or encapsulating of components in the sectors Electronics, Opticals or Medical Engineering
- Fluorescence simulation for material testings, particle detection and optimizing AOI applications
- High-intensive UV irradiation in the biochemical sector
Download:
UV curable adhesives:
UV system solutions with uv curable acrylate and uv epoxy adhesives from Panacol and innovative curing systems from Honle
Technical Data for Honle LED Spot 200 HP IC
| Light-emitting aperture in mm: | 200 x 50 |
| Dimensions in mm (L x W x D): | 203 x 63 x 205 |
|
Wavelengths in nm: Typical intensities HP version (mW/cm2)* |
365 385 395 405 460** 2,200 3,000 3,500 4,000 5,000** |
| Cooling: | Air-cooled (apt for continuous operation) |
| Interfaces: | Digital PLC interface, BUS control via RS485 |
| Safety: | Integrated Control (IC): Monitoring functions including short-circuit, interruption, excess temperature and reading out of operation hours |
* measured with LED-F3/(LED-VIS-F1)
** surface sensor for Hoenle UV-Meter
