Hoenle UVA HAND LED

UVAHAND LED by Hoenle is a handy hand-held UV lamp, ideal for curing adhesives in larger areas. It is easy to transport, ergonomically designed and ideal for mobile use. Its high-intensity irradiation ensures reliable curing results within seconds. A homogeneous intensity distribution is maintained by the arrangements of the LEDs.

The UVAHAND LED can be switched on and off as often as necessary. It does not require a warm-up or cooling phase. The typical service life of a LED is longer than 20,000 hours. Hoenle’s UVA HAND LED  is available with wavelengths of 365 or 405 nm.

UVAHAND LED is especially apt for curing UV reactive adhesives and sealants. Due to its high intensity at 365 nm, UVAHAND LED is an excellent choice for illuminating fluorescing materials for inspection purposes.

Fields of application:

  • curing of UV reactive adhesives when joining glass, plastics and metals
  • curing of UV reactive compounds on electrical and electronic components
  • particle control in clean rooms
  • authenticity testing
  • fluorescent testing for quality control purposes in mechanical enginee ring, aircraft, textile and printing industry


UVAHAND LED does not need any external power supply. The lamp unit can be directly connected to a nearby electrical outlet. High-strength aluminium and polycarbonate lamp housings make UVAHAND LED a very durable product. A strong carry case is available for safe transportation.

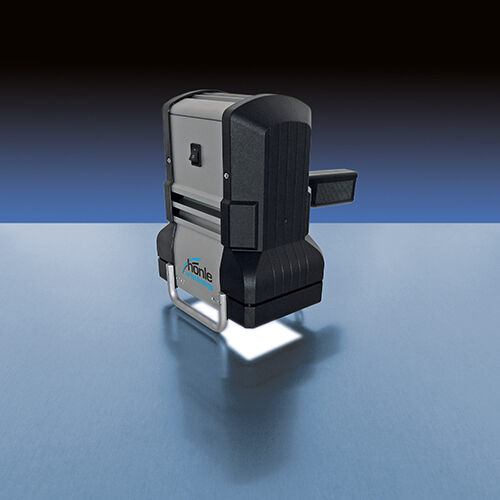

UVAHAND LED by Honle cures adhesives

Hand held uv curing device UVA Hand LED from Honle

Download:

Brochure UVA Hand LED


UV curable adhesives:

UV system solutions with uv curable acrylate and uv epoxy adhesives from Panacol and innovative curing systems from Honle

Technical Data for Hoenle UVA HAND LED

Power supply: 90-264 V; 47-63 Hz
Intensity*:

365 nm: 200 mW/cm2
405 nm: 350 mW/cm2

Dimension of output window:  137 x 75 mm
Weight lamp unit: 1.8 kg
Power input: 70 W

* measured with Honle UV Meter

System Solutions with Hoenle UVA Hand LED and Vitralit® adhesives:

UV Curable Acrylic Adhesives

Hoenle offers UV system solutions with uv curable acrylate adhesives from Panacol

more info >

UV Curable Epoxy Adhesives

System solutions with UV curable epoxy adhesives from Panacol are available

more info >

LED Curable Adhesives

Unlike gas discharge lamps, LED light sources have a monochromatic light spectrum. Therefore, LED devices used for curing adhesive need a wavelength matched to the curing requirements of the particular adhesive used.
