Adhesive Solutions on PCBs

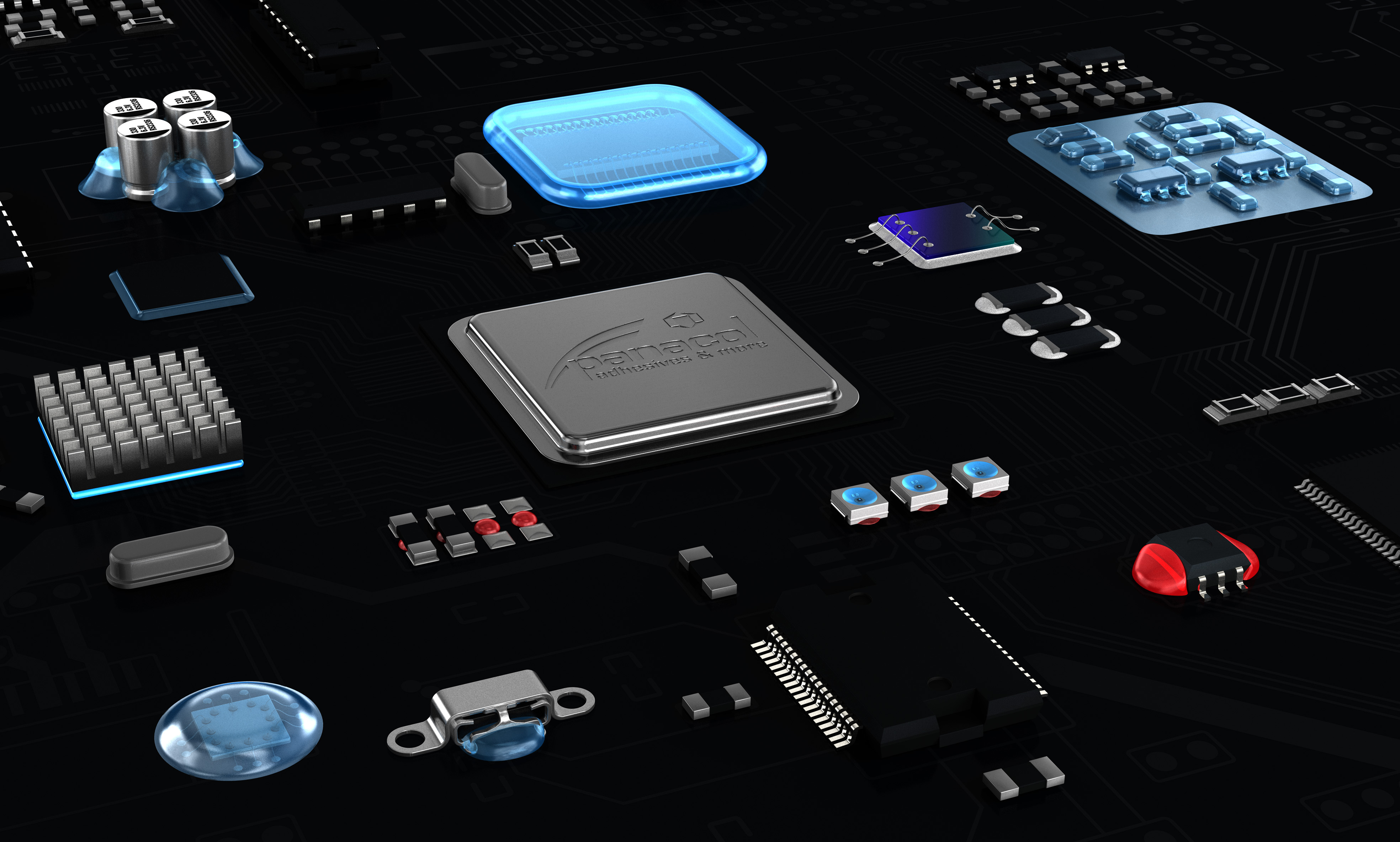

The continuing trend towards miniaturization of PCBs (printed circuit boards) presents the challenge of ensuring that, despite their ever decreasing size, contacts and components continue to work reliably. Many soldered joints on PCBs are therefore being replaced with more flexible electrically conductive adhesives. Conductive adhesives also support thermal management or the management of electrical conductivity.

To protect sensitive components, adhesives are applied to PCBs as glob tops, coatings or underfills for chips. Panacol offers a wide range of adhesives for these applications that meets the various market requirements, such as strong adhesion, halogen-free or temperature and chemical resistance.

System solutions for your bonding applications from a single source: As a member of the Hönle Group, we offer suitable LED UV and UV curing units for our UV-curing adhesives through our system partner Dr. Hönle AG.

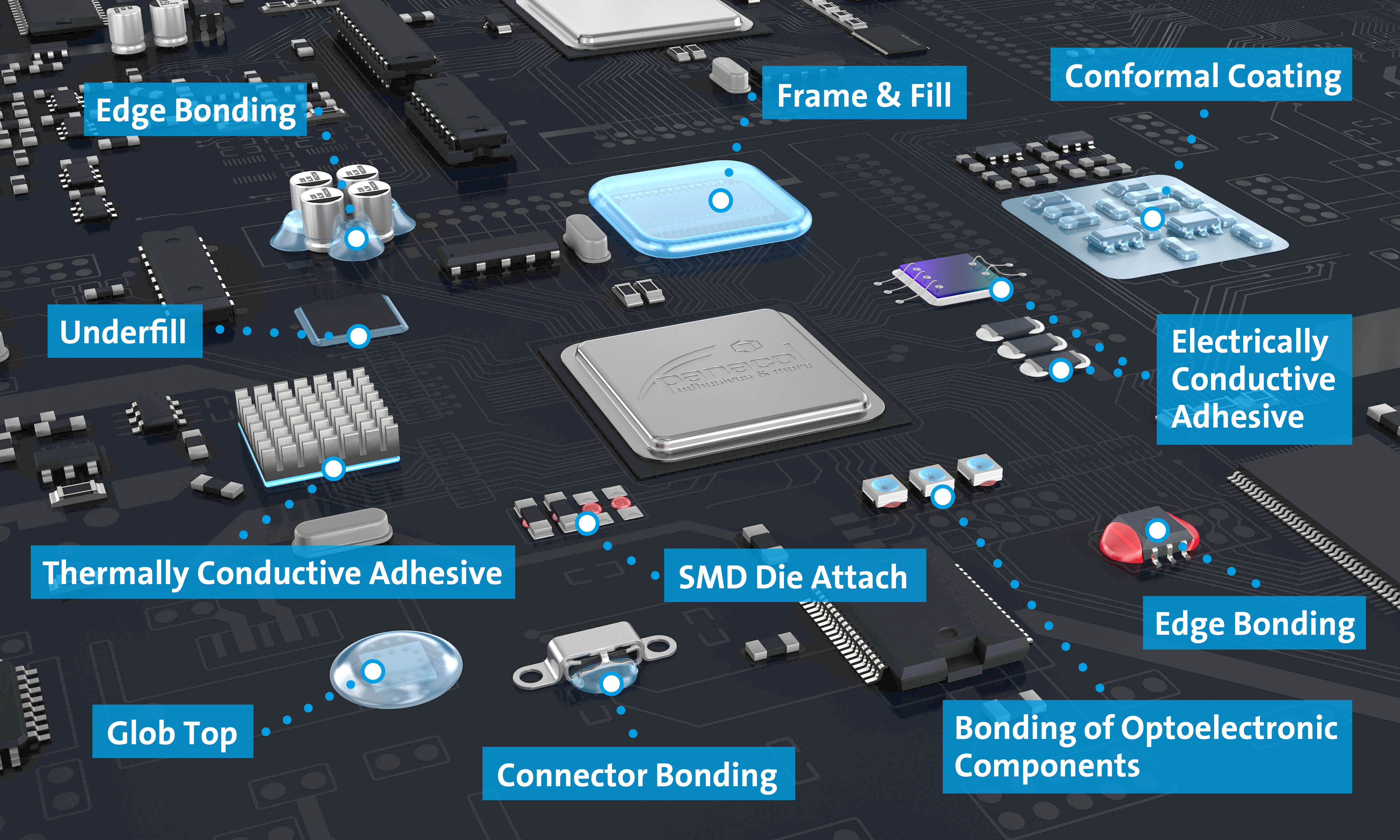

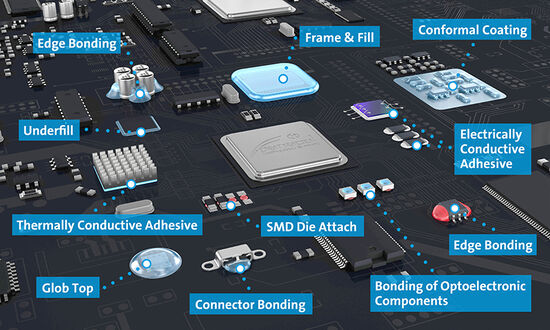

Adhesives on PCBs labeled

Various adhesive solutions for circuit boards (click to enlarge)

Facts and figures:

Elecolit® - Electrically and thermally conductive adhesives

Vitralit® - UV adhesives

Structalit® - Structural adhesives

Downloads:

Smart adhesive solutions for PCBs (pdf)

Adhesives for Flex PCBs (pdf)

Elecolit® (pdf)
Electrically and thermally conductive adhesives

Adhesives have many applications in printed circuit board and PCB assembly:

graphical representation of a PCB flip chip with adhesive as underfill | © Panacol

Flip Chip Underfill

Underfills are used for mechanical stabilization of flip chips. This is especially important when soldering ball grid array (BGA) chips.

more information
Adhesive for attaching SMDs on PCBs | © Panacol

Attaching Components on PCBs

Before soldering, chips or SMDs (surface mounted devices) are often attached to the PCB (printed circuit board) with UV-curing adhesive.

more information
Corner bondings protect battery cells | © Panacol

Edge Bondings

Edge and corner bonding adhesives from Panacol reduce stresses and ensure reliable stability of the secured components.

more information
Glob top adhesive protecting SMDs | © Panacol-Elosol GmbH

Glob Top Sealing Compound

Sealing compounds and encapsulants are often used in electronics as so-called glob tops to protect electronic components.

more information
Adhesives for Coatings and Conformal Coatings | © Panacol

Conformal Coatings

A conformal coating is used to protect electronic components from environmental factors.

more information

Frame-and-Fill

Frame-and-fill adhesives from Panacol are optimally matched and cure thermally or with UV light.

more information
Epoxy adhesive for connector sealing on PCBs | © Panacol

Connector Bonding

UV or heat curable adhesives can be used to bond and seal connectors to printed circuit boards.

more information
electrically conductive adhesive from Panacol jetted onto PCB circuit board | © Panacol

Adhesives with Electrical Conductivity for Applications on PCBs

Electrically conductive adhesives are the perfect solution for making electrical contacts on circuit boards and other temperature-sensitive substrates.

more information
heat conductive adhesive from Panacol on PCB heat sink | © Panacol

Adhesives with Thermal Conductivity for Applications on PCBs

Adhesives with thermal conductivity are often used to dissipate heat from power electronics.

more information
