Bonding of Endoscopes

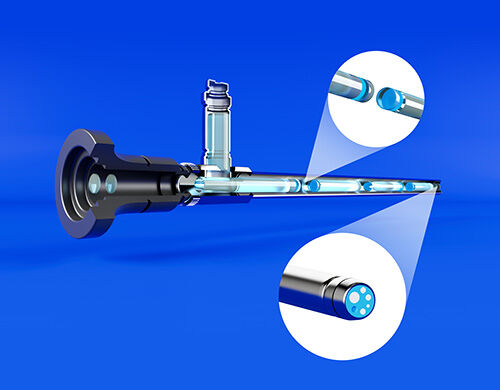

Dual curing Vitralit® adhesives are ideal for bonding lens stacks as well as attaching glass and rod lenses in endoscopes. High strength bonds are formed between glass and metal components that offer biocompatibility, good chemical resistance, and minimal shrinkage. Their high glass transition temperatures ensure operating stability and reliability. These adhesives are compatible with all common sterilization processes.
Panacol adhesives are suitable for bonding rod lenses in endoscopes as well as for potting light guides.
Download:
In the following table you will find an overview of biocompatible adhesives from Panacol that are suitable for the various bonding applications on endoscopes:
| Medical grade adhesive | Viscosity [mPas] | Base | Curing* | Properties/ Certification |
|---|---|---|---|---|
| Structalit® 701 | 3,000-5,000 | 2-part epoxy | thermal |
Transparent in thin layers long potlife fast curing certified to USP Class VI and ISO 10993-5 standards |
| Structalit® 5893 | 6,000-10,000 (Rheometer, 25°C, 10s^-1) | epoxy | thermal |
Black color excellent flow properties filling material for frame&fill applications high resistance to heat and chemicals certified to ISO 10993-5 standards |
| Vitralit® 1655 | 150-300 (Brookfield LVT, 25 °C, Sp. 2/30 rpm) | epoxy |
UV secondary heat cure |
flexible certified to USP Class VI and ISO 10993-5 standards resistant to all common sterilization methods |
| Vitralit® 1702 | 10-100 | acrylate | UV |
Transparent capillary flow biocompatible: certified to USP Class VI standards |
| Vitralit® 1703 | 85,000-130,000 (LVT, 25 °C, Sp. 4/3 rpm) | acrylate | UV |
Shear thinning Shape retaining Certified according to USP Class VI Resistant to sterilization |
| Vitralit® 4731 | 900-1,500 (LVT, 25°C, Sp. 3/30 rpm) | acrylate |
UV VIS |
Dry surface after curing, biocompatible: certified to USP Class VI and ISO 10993-5 standards |
| Vitralit® 5140 | 250-500 | acrylate |
UV VIS |
Flexible, well suited for bonding plastics with low UV translucence and permeable to visible light, biocompatible: certified to USP Class VI standards |
| Vitralit® 6108 | 600-900 | acrylate |
UV VIS secondary heat cure |
non-yellowing excellent flow properties certified to USP Class VI and ISO 10933-5 standards |
| Vitralit® 6108 T | 3,000-6,000 | acrylate |
UV VIS secondary heat cure |
non-yellowing excellent gap-filling certified to USP Class VI standards shear thinning |
| Vitralit® 7041 | 50-90 (LVT 25°C, Sp. 2/60 rpm) | acrylate |
UV VIS |
Excellent adhesion to glass, plastics and metals; biocompatible: certified to USP Class VI standards |
| Vitralit® 7041 F | 50-90 | acrylate |
UV VIS |
Fluorescing, excellent adhesion to glass, plastics and metals; biocompatible: certified to USP Class VI and ISO 10993/-4/-5 standards |
| Vitralit® 7041 T | 1,500-2,300 | acrylate |
UV VIS |
High viscosity/stable, excellent adhesion to glass, plastics and metals; biocompatible: certified to USP Class VI and ISO 10993/-4/-5 standards |
| Vitralit® 7090 VHS | 40-100 | acrylate |
UV VIS |
Dry surface, very high adhesion to plastics, biocompatible: certified to USP Class VI standards |
| Vitralit® 7311 FO | 40-70 (Newtonian liquid, Rheometer, 25 °C) | acrylate |
UV VIS |
Fluorescing orange Capillary flowing Resistant to moisture and alcohol Biocompatible, certified according to USP Class VI and ISO 10993-5/10 Resistant to sterilization |
| Vitralit® 7311 FO T | 1,000-3,000 (Rheometer, 25 °C, 10s^-1) | acrylate |
UV VIS |
Fluorescing orange High resistance to alcohols and moisture non-yellowing very high adhesion to plastics, glass and metals suitable for bonding large areas certified according to USP Class VI |
| Vitralit® 7311 FO Gel | 18,000-35,000 (Rheometer, 25 °C, 10s^-1) | acrylate |
UV VIS |
Fluorescing orange, shape retaining Resistant to humidity and alcohol Certified according to USP Class VI Resistant to sterilization |
| Vitralit® 7562 | 500-900 | acrylate |
UV VIS |
Optically clear flexible elastic high resistance to moisture |
| Vitralit® 7989 | 3,000-5,000 | acrylate | UV |
Excellent adhesion to plastics, especially to PC and PMMA; biocompatible: certified to USP Class VI standards |
| Vitralit® UV 4050 | 140-500 (LVT, 25°C, Sp. 2/30 rpm) | acrylate |
UV VIS |
Certified to ISO 10993-5 and USP Class VI standards modified acrylate impact resistant very fast curing very high adhesion to plastics |
| Vitralit® UV 7030 | 15,000-25,000 (Rheometer, 25 °C, 10s^-1) | acrylate |
UV VIS |
Flexible, high elongation at break, very high shear strength, certified according to USP Class VI |
| Cyanolit® 203 TX | shear thinning | cyanoacrylate |
moisture, room temperature |
Biocompatible: certified to USP Class VI standards |
| Cyanolit® 241 F | 30-50 | cyanoacrylate |
moisture, room temperature |
Capillary flow, biocompatible: certified to USP Class VI standards |
| Cyanolit® 732 F | 230-350 (LVT, 25 °C, Sp. 2/60 rpm) | cyanoacrylate |
moisture, room temperature |
Film forming, suitable for bonding porous materials, biocompatible: certified to USP Class VI standards |
| Elecolit® 323 | paste-like | 2 component epoxy | thermal |
electrically conductive (ICA) thermally conductive ISO 10993-5/-12 certified |
*UV = 320 - 390 nm VIS = 405 nm
