Hoenle LED Spot W
The Hoenle LED Spot W is a super high power, compact, and versatile LED flood-type system ideal for fast curing UV adhesives and potting compounds. The Spot W has an exit window of 20 mm x 20 mm.
Water cooling permits intensities to be generated as high as 30,000 mW/cm2 (at 405nm). This permits very short curing cycle times in high volume production. The chilling system is easy to maintain, utilizing flexible tubing to circulate coolant liquid from the chiller to the LED Spot W head. LED life is 20,000 hours, or more.

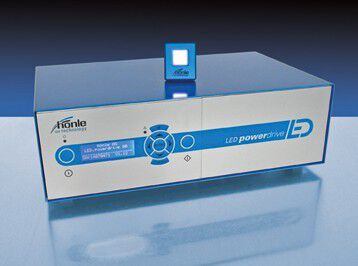

The LED Powerdrive control unit is capable of operating up to three LED Spot W heads. They can be programmed to work simultaneously, in sequence, or totally independently to create up to three separate workstations. A power adjustment feature provides the ability to reduce output intensity from 100% to 10% for maximum operating efficiency.
This system requires no warm-up time. Using an external control, cycle time can be set for less than 100 micro seconds. The LED Spot W can also be programmed for continuous operation. Programming and process monitoring can be accomplished from a remote PLC. A fault warning will be displayed if a single LED fails to operate in the array.
The LED Spot W flood unit is available with LED outputs of 365, 385, 395, 405, and 460nm wavelengths. Typical applications include the curing of UV adhesives, potting materials, and coatings associated with component assembly in the medical, micro-electronics or mobile devices.

The versatile UV flood light LED Spot W from Hoenle
Download:
UV curable adhesives:
UV system solutions with uv curable acrylate and uv epoxy adhesives from Panacol and innovative curing systems from Honle
Technical Data for LED SPOT W
LED service life: | > 20,000 hours* |
Adjustment range of timer (in seconds): | 0.01 - 99.99 or 0.1 - 999.9 or 1- 9999 or continuous operation |
Wavelength in nm Typical intensity in mW/cm² ** |
365 385 395 405 460 14000 16000 25000 25000 30000 |
Power supply: | 90 V – 264 V, 47 Hz – 63 Hz |
Max. input current: | 2.2 A |
Power rating: | 200 W |
Dimensions LED-head without connectors (W x H x D): | ca. 60 x 50 x 17 mm |
Cooling: | External water cooling |
* typical lifetime under specified operating conditions
** measured with Hönle LED sensors for UV meter
